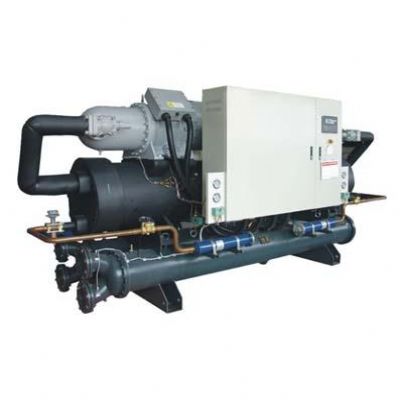

Central air conditioning host
Central air conditioning host
Product description:
Central air conditioning host characteristics:
Selection of world famous compressor:
All of the company's central air conditioning Picks original imported brand-name semi-enclosed screw-type and semi-hermetic reciprocating compressors. Twin screw 5:6 gear ratio and state-of-the-art linear design, low-carbon energy saving and environmental protection; performance, low noise. Size according to customer needs and cold tonnage, using a combination of single or multi. The compressor according to load changes, automatically operate alternately to balance the compressor running hours, greatly extending the period of use of the chiller, trouble-free operation up to 45,000 hours or more.
Energy efficient evaporator:
Evaporator copper tube with the Japanese god indoor and outdoor screw type intensifier tubes. Threaded brass surface, the the brass outer surface is smooth, cooling effect evaporator Flashlight 25mm thick PE insulation board insulation, non-condensing and cooling loss, running the latest CAD design technology, CNC production machining completed, compact and stable performance.
Central air conditioning - the condenser:
Condenser imported from foreign original brass, processed into the the trapezoid low to help tube, to enhance the heat transfer capability. The brass smooth surface, reduce the water pressure, easy to clean maintenance.
Central air conditioning - the protection of the device:
All of the company's chiller protection system device: explosion-proof device, temperature control switch, antifreeze switch fusible plug, high and low pressure switch, overload protection, compressor overheating protection, the compressor the frequent starts protector and unusual light.
Central air conditioning - the computer control system:
Developed high intelligence PLC, PC-class computer-controlled system, explosion-proof circuit control, can do remote monitoring and control, simple operation, the host with the power feeder. Low failure rate, high safety factor, and simple installation. System control can be real-time adjustment, intuitive and reliable, full Chinese display, menu buttons, you can adjust the operating status of the unit, convenient operating environment.
The SCY stand-alone series of performance parameters table Specifications |
|
|
|
|
|
|
Model |
|
|
SCY-030S |
SCY-040S |
SCY-050S |
SCY-060S |
SCY-080S |
SCY-090S |
SCY-100S |
Use the power |
|
3Φ-50Hz-380V |
Cooling capacity |
KW |
108 |
145 |
173 |
198 |
260 |
293 |
335 |
Kcal / h |
92.880 |
124.700 |
148.780 |
170.280 |
223.600 |
251.980 |
288.100 |
Power consumption |
KW |
20.3 |
27.8 |
33.2 |
38.0 |
51.2 |
56.5 |
64.8 |
Frozen water |
m3 / h |
18 |
24 |
29 |
33 |
46 |
50 |
54 |
The amount of cooling water |
m3 / h |
22 |
29 |
35 |
40 |
55 |
62 |
68 |
Compressor |
Type |
|
Semi-hermetic screw type |
Number of units |
|
1 |
Start-up mode |
|
Y-1 △ |
Capacity Adjustment |
% |
0, 25, 50, 100 |
Input power |
KW |
22 |
30 |
36 |
41 |
56 |
61 |
70 |
Refrigeration oil |
Type |
|
SUNISO 4GS |
Filling volume |
L |
7 |
7 |
7 |
8 |
12 |
16 |
16 |
Refrigerant |
Type |
|
R-22 |
Control mode |
|
The Thermostatic external pressure expansion valve |
Filling volume |
kg |
18 |
22 |
27 |
32 |
42 |
48 |
54 |
Evaporator |
Type |
|
Shell and tube |
Diameter |
B |
PT 2-1/2 " |
PT 3 " |
PT 4 " |
Condenser |
Type |
|
Shell and tube |
Diameter |
|
PT 5 " |
PT 4 " |
Protector |
Bottom pressure switch, frost protection, thrombolysis / safety valve, overload protection device, coil overheat protection, automatic temperature protection switch. |
Dimensions |
Long |
mm |
2250 |
2300 |
2500 |
2500 |
2600 |
2800 |
2800 |
Wide |
mm |
800 |
800 |
800 |
800 |
850 |
850 |
850 |
High |
mm |
1450 |
1450 |
1550 |
1550 |
1700 |
1700 |
1800 |
Unit weight |
kg |
1020 |
1150 |
1350 |
1500 |
1680 |
1800 |
1930 |
|
|
Model |
|
|
SCY-120S |
SCY-150S |
SCY-180S |
SCY-200S |
SCY-220S |
SCY-240S |
SCY-260S |
Use the power |
|
3Φ-50Hz-380V |
Cooling capacity |
KW |
409 |
480 |
572 |
638 |
715 |
805 |
866 |
Kcal / h |
351.740 |
412.800 |
491.920 |
548.680 |
614.900 |
692.300 |
744.760 |
Power consumption |
KW |
78.5 |
93.5 |
110.5 |
121.8 |
137 |
154.5 |
166.8 |
Frozen water |
m3 / h |
68 |
80 |
95 |
106 |
122 |
132 |
140 |
The amount of cooling water |
m3 / h |
82 |
98 |
116 |
129 |
148 |
155 |
172 |
Compressor |
Type |
|
Semi-hermetic screw type |
Number of units |
|
1 |
Start-up mode |
|
Y-1 △ |
Capacity Adjustment |
% |
0, 25, 50, 100 |
Input power |
KW |
85 |
100 |
119 |
132 |
148 |
167 |
180 |
Refrigeration oil |
Type |
|
SUNISO 4GS |
|
|
|
|
|
|
Filling volume |
L |
16 |
18 |
23 |
23 |
28 |
28 |
28 |
Refrigerant |
Type |
|
R-22 |
Control mode |
|
The Thermostatic external pressure expansion valve |
Filling volume |
kg |
64 |
73 |
92 |
103 |
116 |
122 |
131 |
Evaporator |
Type |
|
Shell and tube |
Diameter |
B |
PT 5 " |
PT 6 " |
PT 8 " |
Condenser |
Type |
|
Shell and tube |
Diameter |
|
PT 5 " |
PT 6 " |
PT 8 " |
Protector |
Bottom pressure switch, frost protection, thrombolysis / safety valve, overload protection device, coil overheat protection, automatic temperature protection switch. |
Dimensions |
Long |
mm |
3200 |
3300 |
3500 |
3650 |
3650 |
3950 |
3950 |
Wide |
mm |
900 |
900 |
900 |
1000 |
1000 |
1000 |
1000 |
High |
mm |
1800 |
1800 |
1900 |
1900 |
2020 |
2020 |
2020 |
Unit weight |
kg |
2250 |
2500 |
2650 |
2850 |
3000 |
3350 |
3600 |
|
Note: |
|
|
|
|
|
|
|
|
|
|
Specifications 1. Ability determination conditions: chilled water inlet temperature of 12 ° C, the outlet temperature of 7 ° C, cooling water inlet temperature of 30 ° C, the outlet temperature of 35 ° C, the fouling factor 0.0001m2.c \ w; |
|
2 specification content will be subject to change due to product improvement, without notice, there are special requirements, please ask before ordering specification. |
|
|
SCY double machine performance parameters table Specifications |
|
|
|
|
|
|
Model |
|
|
SCY-060D |
SCY-080D |
SCY-100D |
SCY-120D |
SCY-160D |
SCY-180D |
SCY-200D |
Use the power |
|
3Φ-50Hz-380V |
Cooling capacity |
KW |
216 |
290 |
346 |
396 |
520 |
586 |
670 |
Kcal / h |
185.760 |
249.400 |
297.560 |
340.560 |
447.200 |
503.960 |
576.200 |
Power consumption |
KW |
41.0 |
55.8 |
66.5 |
76.2 |
102.5 |
113.0 |
130.3 |
Frozen water |
m3 / h |
35 |
48 |
58 |
65 |
90 |
98 |
115 |
The amount of cooling water |
m3 / h |
43 |
59 |
70 |
80 |
106 |
122 |
138 |
Compressor |
Type |
|
Semi-hermetic screw type |
Number of units |
|
1 |
Start-up mode |
|
Y-△ |
Capacity Adjustment |
% |
0-100 (8 segment capacity control) |
Input power |
KW |
22x2 |
30x2 |
36x2 |
41x2 |
56x2 |
61x2 |
70x2 |
Refrigeration oil |
Type |
|
SUNISO 4GS |
Filling volume |
L |
7x2 |
7x2 |
7x2 |
8x2 |
12x2 |
16x2 |
16x2 |
Refrigerant |
Type |
|
R-22 |
Control mode |
|
The Thermostatic external pressure expansion valve |
Filling volume |
kg |
17x2 |
21x2 |
26x2 |
30x2 |
40x2 |
47x2 |
16x2 |
Evaporator |
Type |
|
Shell and tube |
Diameter |
B |
PT 3 " |
PT 4 " |
PT 5 " |
PT 6 " |
Condenser |
Type |
|
Shell and tube |
Diameter |
|
PT 3 "x2 |
PT 4 "x2 |
Protector |
Bottom pressure switch, frost protection, thrombolysis / safety valve, overload protection device, coil overheat protection, automatic temperature protection switch. |
Dimensions |
Long |
mm |
2900 |
3050 |
3050 |
3200 |
3200 |
3350 |
3350 |
Wide |
mm |
1100 |
1100 |
1150 |
1150 |
1200 |
1200 |
1300 |
High |
mm |
1500 |
1500 |
1650 |
1650 |
1760 |
1760 |
1850 |
Unit weight |
kg |
1860 |
2000 |
2250 |
2550 |
3050 |
3300 |
3500 |
|
|
Model |
|
|
SCY-240D |
SCY-300D |
SCY-360D |
SCY-400D |
SCY-440D |
SCY-2480D |
SCY-520D |
Use the power |
|
3Φ-50Hz-380V |
Cooling capacity |
KW |
818 |
960 |
1145 |
1276 |
1430 |
1610 |
1732 |
Kcal / h |
703.480 |
825.600 |
984.700 |
1.097.360 |
1.229.800 |
1.384.600 |
1.489.520 |
Power consumption |
KW |
158 |
186 |
222 |
243 |
274.2 |
309 |
333 |
Frozen water |
m3 / h |
135 |
165 |
188 |
212 |
242 |
268 |
290 |
The amount of cooling water |
m3 / h |
163 |
202 |
230 |
258 |
295 |
320 |
352 |
Compressor |
Type |
|
Semi-hermetic screw type |
Number of units |
|
1 |
Start-up mode |
|
Y-1 △ |
Capacity Adjustment |
% |
0-100 (8 segment capacity control) |
Input power |
KW |
85x2 |
100x2 |
119x2 |
132x2 |
148x2 |
167x2 |
180x2 |
Refrigeration oil |
Type |
|
SUNISO 4GS |
Filling volume |
L |
16x2 |
18x2 |
23x2 |
23x2 |
28x2 |
28x2 |
28x2 |
Refrigerant |
Type |
|
R-22 |
Control mode |
|
The Thermostatic external pressure expansion valve |
Filling volume |
kg |
63x2 |
75x2 |
90x2 |
103x2 |
115x2 |
121x2 |
130x2 |
Evaporator |
Type |
|
? Tubular |
Diameter |
B |
PT 8 " |
PT 6 "x2 |
PT 8 "x2 |
Condenser |
Type |
|
? Tubular |
Diameter |
|
PT 5 "x2 |
PT 6 "x2 |
PT 8 "x2 |
Protector |
Bottom pressure switch, frost protection, thrombolysis / safety valve, overload protection device, coil overheat protection, automatic temperature protection switch. |
Dimensions |
Long |
mm |
3600 |
3850 |
3850 |
4000 |
4000 |
4350 |
4350 |
Wide |
mm |
1300 |
1300 |
13,000 |
1420 |
1420 |
1420 |
1420 |
High |
mm |
1850 |
1850 |
1960 |
1960 |
2080 |
2080 |
2080 |
Unit weight |
kg |
3850 |
4500 |
5360 |
5360 |
5600 |
5850 |
6280 |
Note: |
|
|
|
|
|
|
|
|
|
|
Specifications 1. Ability determination conditions: chilled water inlet temperature of 12 ° C, the outlet temperature of 7 ° C, cooling water inlet temperature of 30 ° C, the outlet temperature of 35 ° C, the fouling factor 0.0001m2.c \ w; |
|
2 specification content will be subject to change due to product improvement, without notice, there are special requirements, please ask before ordering specification. |
|
|
|
|
|
|
|
