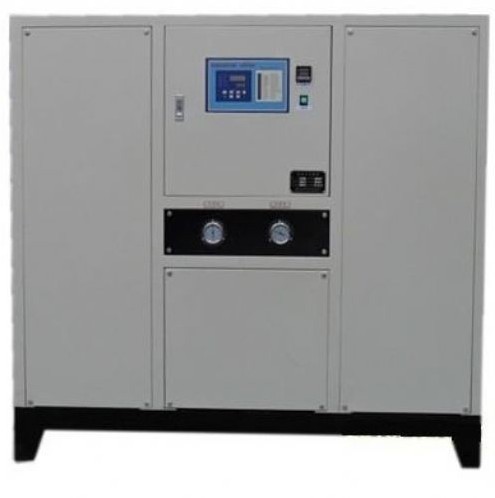

Product description:
SCY-M series of hot and cold dual temperature control machine to adapt to the needs of our customers and launched a deep one hundred million Refrigeration Equipment Co., Ltd. in Shenzhen, specializing in providing cooling and heating of dual-use integration of water recycling, is widely used in sponge manufacturing composite foam, pharmaceutical and chemical industries.
Unit features and functions:
▲ under production required to provide cooling water circulation equipment cooling or hot water to heat up while a constant temperature between ± 2 ℃, convenient one-button operation, conversion or the temperature and speed.
▲ host selection of the United States and Japan new imported brand-name compressor, built-in security protection, low noise, stable and durable.
▲ electrical part of the international brand "Schneider" original products are selected.
▲ complete protection, the intelligent fault indication, buzzer alarm, a high degree of automation, no special operation.
Hot and cold dual temperature control technology parameters (polyurethane dedicated)
|
Item Model |
SCY-3M |
SCY-5M |
SCY-8M |
SCY-10M |
SCY-12M |
SCY-15M |
|
Cooling capacity |
Kcal / h |
6803 |
11094 |
17604 |
22188 |
25146 |
35500 |
|
KW |
7.91 |
12.9 |
20.47 |
25.8 |
29.24 |
41.28 |
|
Enter the total power KW |
9.33 |
14.8 |
21.25 |
22.37 |
29.58 |
33.82 |
|
Power supply |
3PH-380V-50HZ |
|
Refrigerant |
Name |
R22 |
|
Control mode |
Capillary |
The external balanced thermostatic expansion valve |
|
Compressor |
Type |
Hermetic scroll (piston) |
|
Power (KW) |
2.8 |
4.66 |
7.95 |
8.85 |
9.98 |
13.62 |
|
Condenser |
Type |
Efficient copper tube sets of aluminum fins + low noise external rotor fan |
|
Cooling air volume (m3 / h) |
3000 |
5000 |
8000 |
10000 |
12000 |
15,000 |
|
Evaporator |
Type |
The radiator coil (shell and tube) |
|
Frozen water m3 |
1.36 |
2.22 |
3.52 |
4.44 |
5.03 |
7.1 |
|
Water Tank Capacity L |
50 |
70 |
120 |
200 |
200 |
270 |
|
And out of the water pipe diameter |
1 " |
1 " |
1 " |
1-1/2 " |
1-1/2 " |
2 " |
|
Pumps |
Power (KW) |
0.37 |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
|
Head (M) |
20 |
20 |
22 |
20 |
20 |
20 |
|
Heating device |
Heating pipe |
|
Power (KW) |
6 |
9 |
12 |
12 |
18 |
18 |
|
Security |
Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, traffic protection, phase sequence / lack phase protection, exhaust overheating protection, frost protection. |
|
Dimensions |
Length (MM) |
930 |
1140 |
1300 |
1530 |
1680 |
1800 |
|
Width (MM) |
520 |
560 |
720 |
760 |
810 |
990 |
|
High (MM) |
975 |
1040 |
1350 |
1470 |
1280 |
1680 |
|
Machine weight |
Kg |
135 |
175 |
320 |
450 |
530 |
750 |
