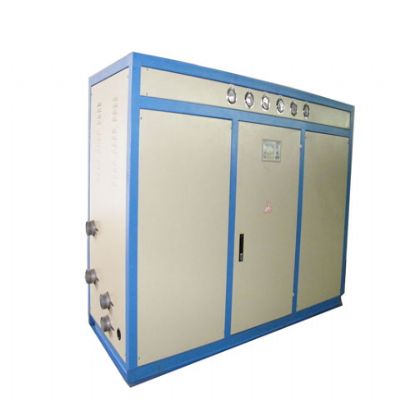

Product: Chiller features:
(This chiller acid type or alkali type) can be customized
Durable:
Refrigeration heart with fully sealed low noise, vibration small, high-performance power-saving imported brand-name compressor, electrical control all adopt imported brand-name original, heat exchangers, shell and tube condenser heat exchanger performance, ease of cleaning and maintenance.
Energy Economy:
Digital electronic thermostat accurately control the cold water temperature between +3 ℃ to 50 ℃, so as to control the unit normal operation, ensure the unit to save energy, and assembly of all the units, internal wiring, refrigerant filling and commissioning are completed in the factory, this section models can be ordered hot and cold dual-use.
Safe operation:
Fuselage equipped with compressor delay start protection, over-current relay, high and low voltage protection, fuse plugs, electronic time protect the safety valve to ensure the normal operation of the unit.
Condenser:
Threaded steel pipe with high efficiency at both ends of the lid the interchangeable to pay more dreams direction, multi-loop water pipe flow, the condenser and compressor capacity of co-ordination, straight-through water pipes are easy to clean and maintain.
Water-cooled chiller ① Specifications / SPECIFICACATIONS |
Parameters Parameter |
Model Model |
SCY-03W |
SCY-04W |
SCY-05W |
SCY-06W |
SCY-08WD |
SCY-10WD |
SCY-12WD |
SCY-15WD |
Cooling capacity
Cooling Capacity |
Kw
50Hz/60Hz |
9.59
11.22 |
12.43
14.54 |
15.91
18.62 |
19.18
22.45 |
24.85
29.08 |
31.83
37.24 |
38.37
44.89 |
50.14
58.66 |
Kcal / h
50Hz/60Hz |
8251
9654 |
10682
12498 |
13690
16018 |
16503
19308 |
21375
25009 |
27370
32023 |
32994
38603 |
43120
50451 |
Total input power
Total inpupt |
kW |
2.8 |
3.55 |
4.3 |
5.2 |
6.8 |
8.4 |
10.1 |
13.1 |
Maximum operating current
Maximum Running Current |
A |
6.7 |
8.4 |
10.5 |
12.6 |
16.5 |
20.4 |
24.6 |
31.8 |
Power supply
Power Supply |
3N-380V/415V 50Hz/60Hz |
Refrigerant
Refrigerant |
Name Name |
R22 |
Filling volume
Control Type |
Kg |
1.7 |
2.2 |
2.8 |
3.4 |
2.2x2 |
2.8x2 |
3.4x2 |
4.2x2 |
Control method
control type |
Capillary
Capillary Tube |
The external balanced thermostatic expansion valve
External Balanced
Thermostatic Expansion Valve |
Compressor
Compressor |
Type Type |
Fully enclosed scroll or piston With hermetic gyral or piston |
Power Motor |
Kw |
2.25 |
3 |
3.75 |
4.5 |
3x2 |
3.75x2 |
4.5x2 |
5.5x2 |
Cooling water
Cooling Water |
Water Flow |
m3 / h |
2.06
2.41 |
2.67
3.12 |
3.42
4 |
4.13
4.83 |
5.34
6.25 |
6.85
8.01 |
8.24
9.64 |
10.78
12.61 |
Water resistance PD |
Kpa |
28 |
27 |
34 |
30 |
38 |
34 |
41 |
28 |
And out of the water pipe diameter
In / Out pipe size |
G3 / 4 " |
G3 / 4 " |
G1-1/2 " |
G1-1/2 " |
G1-1/2 " |
G1-1/2 " |
G2 " |
G2 " |
Chilled water
Freeze Water |
Water Flow |
m3 / h |
1.65
1.93 |
2.14
2.5 |
2.74
3.2 |
3.3
3.86 |
4.27
5 |
5.47
6.4 |
6.59
7.72 |
8.62
10.09 |
Tank Tank |
m3 |
0.038 |
0.065 |
0.065 |
0.11 |
0.11 |
0.188 |
0.188 |
0.285 |
And out of the water pipe diameter
In / Out pipe size |
G1 / 4 "x4 |
G1 / 4 "x4 |
G1 / 4 "x4 |
G1 " |
G2-1/2 " |
G2 " |
G2 " |
G2 " |
Pumps Pump |
Power Motor |
Kw |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
Pressure Pressure |
KPa |
242 |
242 |
290 |
290 |
290 |
205 |
205 |
205 |
Dimensions
Dimension |
Long Length |
mm |
830 |
830 |
1080 |
1080 |
1300 |
1300 |
1600 |
1675 |
Wide Width |
mm |
460 |
460 |
580 |
580 |
610 |
610 |
750 |
750 |
High Height |
mm |
1020 |
1020 |
1230 |
1230 |
1445 |
1445 |
1445 |
1608 |
Weight Weight |
Kg |
120 |
140 |
150 |
200 |
210 |
290 |
310 |
400 |
|
|
Water-cooled chiller the ② specifications / SPECIFICACATIONS |
Parameters Parameter |
Model Model |
SCY-20WD |
SCY-25WD |
SCY-30WD |
SCY-35WD |
SCY-40WD |
SCY-45WD |
SCY-50WD |
SCY-60WD |
Cooling capacity |
Kw
50Hz/60Hz |
67.14
78.56 |
81.53
95.39 |
99.91
116.05 |
117.28
137.22 |
129.06
151 |
148.68
173.95 |
153.91
180.07 |
198.12
237.75 |
Cooling Capacity |
Kcal / h
50Hz/60Hz |
57748
67565 |
70120
82040 |
85303
99805 |
100869
118016 |
110,984
129,851 |
127868
149605 |
132,359
154,860 |
170,383
204,460 |
Total input power
Motor Ipupt |
kW |
17.3 |
21.3 |
25.6 |
29.4 |
33.1 |
38.6 |
42.5 |
59 |
Maximum operating current
Maximum Running Current |
A |
42.1 |
48.5 |
58.3 |
65.4 |
75.4 |
80.6 |
88.4 |
101.92 |
Power Power Supply |
Volt |
3N-380V/415V 50Hz/60Hz |
Refrigerant
Refrigerant |
Name Name |
R22 |
Filling volume
Charge |
Kg |
5x2 |
6.3x2 |
7.5x2 |
9.2x2 |
10x2 |
11.3x2 |
12.5x2 |
15.6x2 |
Control method
control type |
The external balanced thermostatic expansion valve
External Balanced Thermostatic Expansion Valve |
Compressor
Compressor |
Type Type |
Fully enclosed scroll or piston With hermetic gyral or piston |
Power Motor |
Kw |
7.5x2 |
9.4x2 |
11.3x2 |
13x2 |
15x2 |
16.9x2 |
18.8x2 |
22.5x2 |
Cooling water
Cooling Water |
Water Flow |
m3 / h |
14.44
16.9 |
17.54
20.52 |
21.32
24.94 |
25.22
29.51 |
27.74
32.46 |
31.98
37.42 |
33.09
38.72 |
41.6
49.93 |
Water resistance PD |
Kpa |
38 |
30 |
36 |
37 |
35 |
40
And |
42 |
45 |
And out of the water pipe diameter
In / Out pipe size |
G2-1/2 " |
G2-1/2 " |
G2-1/2 " |
G3 " |
G3 " |
G3 " |
G3 " |
G3 " |
Chilled water
Freeze Water |
Water Flow |
m3 / h |
11.55
13.52 |
14.03
16.41 |
17.06
19.96 |
20.18
23.61 |
22.19
25.97 |
25.58
29.93 |
26.48
30.98 |
33.28
39.94 |
Tank Tank |
m3 |
0.285 |
0.405 |
0.405 |
0.405 |
0.61 |
0.61 |
0.61 |
0.61 |
And out of the water pipe diameter
In / Out pipe size |
G2-1/2 " |
G2-1/2 " |
G2-1/2 " |
G3 " |
G3 " |
G3 " |
G3 " |
G3 " |
Pumps |
Power Motor |
Kw |
2.2 |
2.2 |
4 |
4 |
4 |
4 |
4 |
4 |
Pump |
Head Raise |
KPa |
220 |
220 |
250 |
250 |
250 |
250 |
250 |
250 |
Dimensions
Dimension |
Long Length |
mm |
1880 |
1980 |
2130 |
2100 |
2200 |
2200 |
2200 |
2400 |
Wide Width |
mm |
914 |
914 |
940 |
1020 |
1000 |
1070 |
1070 |
1150 |
High Height |
mm |
1780 |
1950 |
1950 |
2000 |
2000 |
2000 |
2100 |
2200 |
Weight |
Kg |
440 |
620 |
690 |
760 |
850 |
950 |
1000 |
1100 |
|
