The SCY open chiller

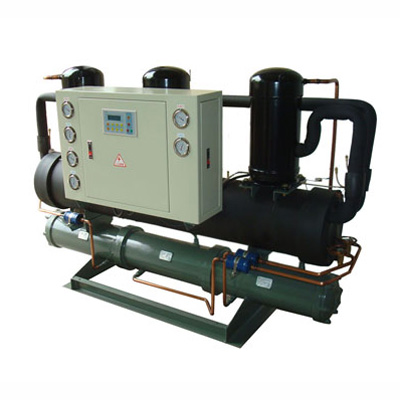

Open Chiller
Product description: Open Chiller
Parameters:
Details:
The open chiller can custom acid or alkali-resistant type (titanium bubble evaporator)
※ energy saving, cost-effective and durable; refrigeration heart - compressor with fully sealed low noise, small vibration, efficient power saving imported compressor electrical control all adopt imported brand-name original, heat exchangers, shell and tube condenser, for high thermal efficiency, easy cleaning and maintenance. Energy-Efficient Economy: Digital electronic thermostat accurately control the cold water temperature between +3 ℃ to +50 ℃, so as to control the unit normal operation, to ensure the unit energy savings, the assembly of all the units, internal wiring, refrigerant filling and unit commissioning at the factory. Safe operation: the fuselage equipped with compressor delay start protection, overcurrent protection, high and low voltage protection, fuse plugs, electronic time protect the safety valve to ensure the normal operation of the unit. Unit device: 10P or more units selectable dual-circuit cooling between work base, even if the failure of the primary circuit fails, another loop can be run properly to ensure normal production process.
A deep billion open chiller access to a number of European and American CE certification and many other honors, is a model of a new generation of energy saving products, old brand - trusted!
Type |
SCY-03WT |
SCY-05WT |
SCY-08WT |
SCY-10WT |
SCY-12WT |
SCY-15WT |
SCY-20WT |
Use the power |
3Ф-50Hz-380V |
Cooling capacity |
kW |
9.5 |
16.3 |
23.5 |
31.9 |
40.3 |
48.2 |
63.6 |
Kcal / h |
8,170 |
14,020 |
20,210 |
27,430 |
34,650 |
41,460 |
54,690 |
Power consumption |
kW |
2.4 |
4.1 |
6.0 |
8.1 |
10.3 |
12.4 |
16.5 |
Frozen water |
m3 / h |
1.6 |
2.6 |
4.3 |
5.5 |
6.9 |
8.2 |
10.8 |
The amount of cooling water |
m3 / h |
2.0 |
3.2 |
5.4 |
6.8 |
8.6 |
10.3 |
13.9 |
Compressor |
Type |
|
Hermetic scroll / piston |
Start-up mode |
|
Order of direct starting |
Input power |
kW |
2.3 |
3.8 |
5.6 |
7.5 |
9.4 |
11.3 |
15.0 |
Refrigerant |
Type |
|
R-22 |
Control mode |
|
The Thermostatic external pressure expansion valve |
Filling volume |
Kg |
1.5 |
2.5 |
4.0 |
5.0 |
6.2 |
7.5 |
10.5 |
Evaporation |
Type |
|
Shell and tube |
Diameter |
B |
PT1 〃 |
PT1-1/2 〃 |
PT2 〃 |
Condenser |
Type |
|
Shell and tube |
Diameter |
B |
PT1 〃 |
PT1-1/2 〃 |
PT2 〃 |
PT2-1/2 〃 |
Protector |
Low pressure switch, frost protection, thrombolysis / safety valve, overload protection device, coil overheating protection, temperature automatic protection switches, etc.. |
Dimensions |
Long |
mm |
600 |
950 |
1260 |
1260 |
1260 |
1600 |
1600 |
Wide |
mm |
500 |
500 |
500 |
650 |
650 |
650 |
700 |
High |
mm |
1100 |
1220 |
1220 |
1220 |
1300 |
1300 |
1300 |
Unit weight |
kg |
130 |
150 |
260 |
280 |
300 |
460 |
520 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Type |
SCY-25WT |
SCY-30WT |
SCY-35WT |
SCY-40WT |
SCY-45WT |
SCY-50WT |
SCY-60WT |
Use the power |
3Ф-50Hz-380V |
Cooling capacity |
kW |
78.2 |
95.2 |
108.3 |
125.1 |
139.8 |
155.3 |
186.5 |
Kcal / h |
67,250 |
81,870 |
93,130 |
107,580 |
120, 230 |
133,560 |
160,390 |
Power consumption |
kW |
20.2 |
24.6 |
28.3 |
32.2 |
36.5 |
40.3 |
48.5 |
Frozen water |
m3 / h |
13.6 |
16.0 |
18.8 |
21.2 |
24.1 |
26.5 |
31.8 |
The amount of cooling water |
m3 / h |
17.2 |
20.5 |
24.0 |
27.3 |
30.8 |
34.2 |
40.8 |
Compressor |
Type |
|
Hermetic scroll / piston |
Start-up mode |
|
Order of direct starting |
Input power |
kW |
18.8 |
22.5 |
26.3 |
30.0 |
33.8 |
37.5 |
45.0 |
Refrigerant |
Type |
|
R-22 |
Control mode |
|
The Thermostatic external pressure expansion valve |
Filling volume |
Kg |
12.5 |
15.0 |
17.5 |
20.2 |
22.5 |
25.0 |
30.0 |
Evaporation |
Type |
|
Shell and tube |
Diameter |
B |
PT2-1/2 〃 |
P3 〃 |
Condenser |
Type, |
|
Shell and tube |
Diameter |
B |
PT2-1/2 〃 |
P3 〃 |
Protector |
Low pressure switch, frost protection, thrombolysis / safety valve, overload protection device, coil overheating protection, temperature automatic protection switches, etc.. |
Dimensions |
Long |
mm |
1850 |
1850 |
1850 |
2250 |
2250 |
2250 |
2600 |
Wide |
mm |
700 |
700 |
700 |
850 |
850 |
850 |
850 |
High |
mm |
1300 |
1360 |
1360 |
1420 |
1420 |
1420 |
1420 |
Unit weight |
kg |
600 |
850 |
960 |
1050 |
1250 |
1380 |
1550 |
|
|
|
|
|
|
|
